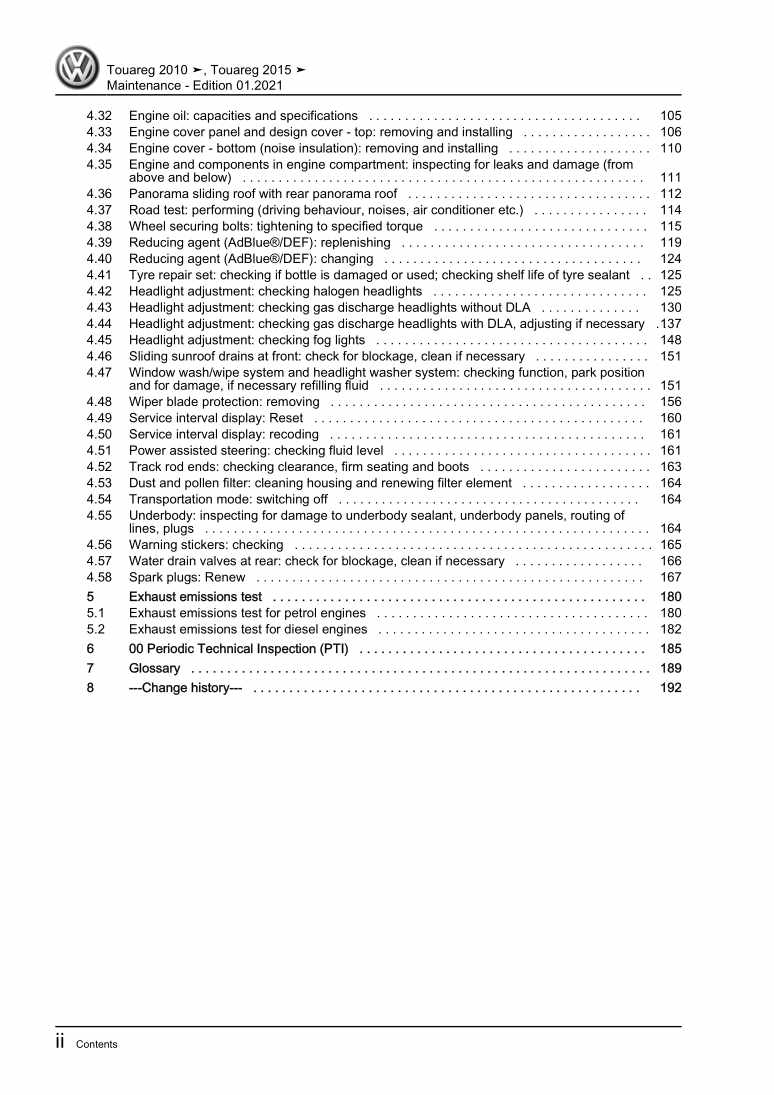

Maintenance

Chapter overview

• 1 Engine list
  1
• 2 Service work
  4
• 2.1 Information about flexible or fixed service
  4
• 2.2 Service tables
  6
• 3 General information
  20
• 3.1 Raising vehicle with lifting platform or trolley jack
  20
• 3.2 Stickers
  21
• 3.3 Connecting vehicle diagnostic tester
  23
• 3.4 Vehicle identification number
  24
• 3.5 Vehicle data sticker
  25
• 3.6 Countries with hot climate
  26
• 3.7 Country overview for diesel not compliant with EN 590
  26

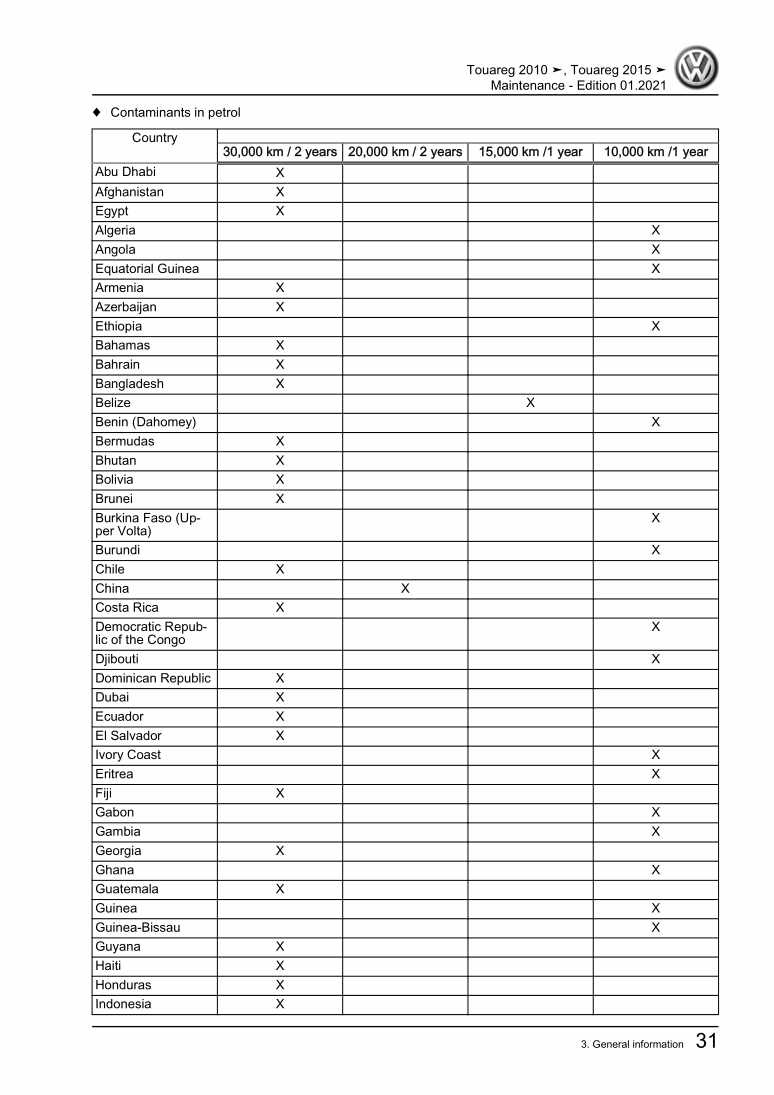

• 3.8 Country overview for petrol not compliant with EN 228
  27
• 3.9 Engine code and engine number
  28
• 3.10 Severe operating conditions
  28
• 3.11 Countries with high levels of dust
  29
• 3.12 Type plate
  30
• 3.13 Shortened intervals for spark plug replacement
  30
• 3.14 Jacking up mode: switching self-levelling suspension off and on
  33
• 4 Descriptions of work
  35
• 4.2 Automatic headlight control and static cornering light: checking function
  38
• 4.3 Automatic gearbox: changing ATF (0C8 gearbox)
  39
• 4.4 Battery: checking charge level
  39
• 4.6 Status of battery: reading, sending diagnosis protocol online
  41
• 4.8 Front passenger front airbag: checking key switch and “ON/OFF function”
  50
• 4.9 Brake system and shock absorbers: inspecting for leaks and damage
  51
• 4.10 Changing brake fluid
  52
• 4.11 Brake fluid level (dependent upon brake pad/lining wear): check
  56
• 4.13 Diesel particulate filter: Check
  60
• 4.14 Electric windows: checking positioning (open and close functions)
  61
• 4.16 Bonnet catch hook: grease
  62
• 4.17 Gearbox, final drive and drive shaft boots: inspect for leaks and damage
  62
• 4.18 Hybrid components: inspect for damage to high-voltage components and wires
  63
• 4.19 Interior and exterior body: inspecting for corrosion with doors and flaps open
  63
• 4.20 Poly V-belt: renewing
  64
• 4.21 Poly V-belt: checking condition
  64
• 4.22 Poly V-belt for compressor: renew
  65
• 4.23 Diesel fuel filter: draining
  65
• 4.24 Diesel fuel filter: renewing (diesel engine)
  68
• 4.25 Cooling system: checking frost protection and coolant level
  72
• 4.26 Air suspension: checking for leaks and damage
  75
• 4.27 Air filter: cleaning housing and renewing filter element
  75
• 4.28 Multi-purpose additive for diesel fuel: adding
  90
• 4.29 Multi-purpose additive for petrol fuel: adding
  92
• 4.30 Engine oil level: checking
  93
• 4.31 Draining or extracting engine oil, renewing oil filter and replenishing engine oil
  94
• 4.32 Engine oil: capacities and specifications
  105
• 4.33 Engine cover panel and design cover - top: removing and installing
  106
• 4.34 Engine cover - bottom (noise insulation): removing and installing
  110
• 4.36 Panorama sliding roof with rear panorama roof
  112
• 4.37 Road test: performing (driving behaviour, noises, air conditioner etc.)
  114
• 4.38 Wheel securing bolts: tightening to specified torque
  115
• 4.39 Reducing agent (AdBlue®/DEF): replenishing
  119
• 4.40 Reducing agent (AdBlue®/DEF): changing
  124
• 4.42 Headlight adjustment: checking halogen headlights
  125
• 4.43 Headlight adjustment: checking gas discharge headlights without DLA
  130
• 4.45 Headlight adjustment: checking fog lights
  148
• 4.46 Sliding sunroof drains at front: check for blockage, clean if necessary
  151
• 4.48 Wiper blade protection: removing
  156
• 4.49 Service interval display: Reset
  160
• 4.50 Service interval display: recoding
  161
• 4.51 Power assisted steering: checking fluid level
  161
• 4.52 Track rod ends: checking clearance, firm seating and boots
  163
• 4.53 Dust and pollen filter: cleaning housing and renewing filter element
  164
• 4.54 Transportation mode: switching off
  164
• 4.56 Warning stickers: checking
  165
• 4.57 Water drain valves at rear: check for blockage, clean if necessary
  166
• 4.58 Spark plugs: Renew
  167
• 5 Exhaust emissions test
  180
• 5.1 Exhaust emissions test for petrol engines
  180
• 5.2 Exhaust emissions test for diesel engines
  182
• 6 00 Periodic Technical Inspection (PTI)
  185
• 7 Glossary
  189
• 8 \---Change history---
  192
