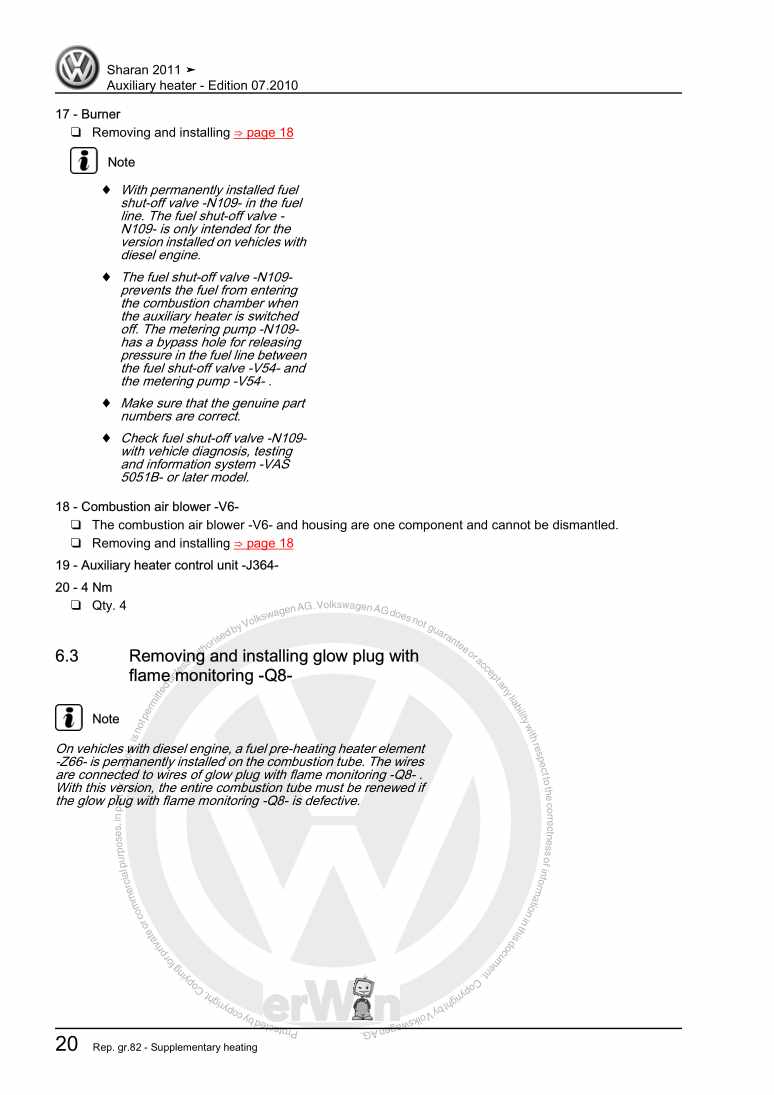

  • Examplepage for repair manual Auxiliary heater
  • Examplepage for repair manual 2 Auxiliary heater
  • Examplepage for repair manual 3 Auxiliary heater
  • Examplepage for repair manual Auxiliary heater
  • Examplepage for repair manual 2 Auxiliary heater
  • Examplepage for repair manual 3 Auxiliary heater

Auxiliary heater

For Sharan

Original Volkswagen repair manual


5,84 €7% VAT incl.

Immediately available for download

Language: English

Digital PDF file

1.915 KB

43 Sites

Detailed technical data

Immediately readable

This repair manual contains: Auxiliary heater Thermo Top V, Notes on general repairs on vehicles with auxiliary heaters and Rules for cleanliness when working on the auxiliary heater and the fuel system. Show more
Secure Payment via PayPal, credit card, direct debit and more
PayPal Logo SEPA Lastschrift Logo Giropay Logo Sofort Überweisung Logo

Repair manual Sharan Auxiliary heater PDF download has the following content:

Chapter overview

  • Supplementary heating
    1
  • 1 Auxiliary heater Thermo Top V
    1
  • 1.1 Safety measures for working on vehicles with auxiliary heaters
    1
  • 1.2 Note on auxiliary heater operation in vehicles with diesel engine
    1
  • 1.3 Notes for vehicles with a start-stop system
    1
  • 1.4 Safety measures for vehicles with a start-stop system
    2
  • 2 Notes on general repairs on vehicles with auxiliary heaters
    3
  • 2.1 Starting conditions for auxiliary heating (preheater)
    3
  • 2.2 Starting conditions for auxiliary heating
    3
  • 3 Rules for cleanliness when working on the auxiliary heater and the fuel system
    5
  • 4 Repairing auxiliary heater Thermo Top V
    6
  • 4.1 Repairing auxiliary heater Thermo Top V
    6
  • 5 Removing and installing auxiliary heater Thermo Top V
    12
  • 5.1 Components of auxiliary heater Thermo Top V
    12
  • 5.2 Removing ancillaries of auxiliary heater Thermo Top V
    15
  • 6 Dismantling and assembling auxiliary heater Thermo Top V
    18
  • 6.1 Dismantling and assembling auxiliary heater Thermo Top V
    18
  • 6.2 Inner components of auxiliary heater
    18
  • 6.3 Removing and installing glow plug with flame monitoring Q8
    20
  • 6.5 Removing and installing heater coolant shut-off valve N279
    21
  • 7 Connecting auxiliary heater Thermo Top V to coolant circuit
    24
  • 7.4 Coolant hose routing on vehicles with 2nd heat exchanger
    28
  • 8 Fuel supply for auxiliary heater Thermo Top V
    30
  • 8.1 Fuel supply for auxiliary heater Thermo Top V
    30
  • 8.2 Removing and installing metering pump V54
    31
  • 8.3 Testing quantity of fuel delivered
    32
  • 9 Regulation of auxiliary heater Thermo Top V
    35
  • 9.1 Functional description of auxiliary heater Thermo Top V
    35
  • 9.2 Preheating mode
    36
  • 9.3 Auxiliary heating mode
    36
  • 9.4 Switching off
    36
  • 10 Connector pin assignment of auxiliary heater Thermo Top V
    37
  • 10.1 Connector pin assignment of auxiliary heater Thermo Top V
    37
  • 11 Functional description of remote control for auxiliary heater Thermo Top V
    38
  • 11.1 Switching auxiliary heater on using remote control
    38
  • 11.2 Switching auxiliary heater off using remote control
    38
  • 11.3 Renewing remote control battery
    39
  • 11.4 Warning lamp in remote control
    39
Manufacturer's designation Auxiliary heater
Manufacturer Volkswagen
Suitable for Sharan (2011)
Suitable car types 7N1
Category Reparaturanleitung
